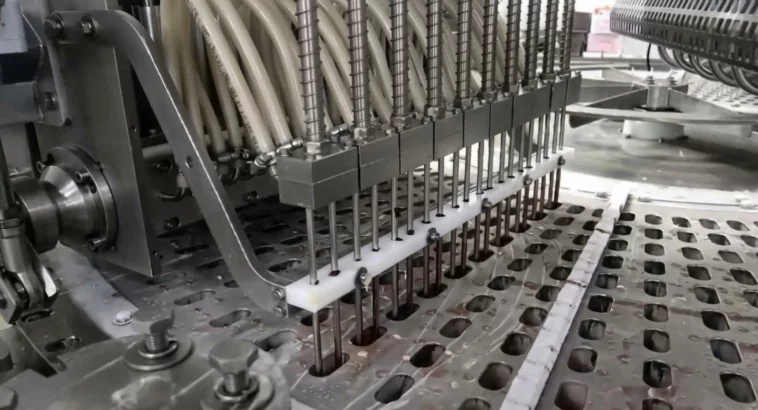

Double pencil filler
Can be used as a vertical filler for two-tone ice cream or as a top-water filler. Capability to dose multiple flavors simultaneously by using extra hoppers in cases where more than two flavors are required.
Dual-flavor volumetric “pencil” filler with heating system completely synchronized with the machine’s movement. Fully pneumatic operation, constructed entirely of AISI 316 stainless steel and suitable for dosing syrups. The support structure is made of stainless steel. The rotary valve is made of Delrin, while the body is stainless steel. Double stainless steel hopper. Vertical movement system inside the mold, equipped with a safety system that stops the machine in case of emergency. Standard volume: 0–65 cc.
The unit is supported by columns for easy positioning and disassembly for maintenance. Device configured with a 10-row assembly. Heating for “Pencil” Filler: Jacketed hoppers with a water circuit heated by electrical resistance. Delrin valve designed for tempered products such as chocolate or caramel syrup, utilizing 4mm diameter stainless steel tube nozzles (unheated).
